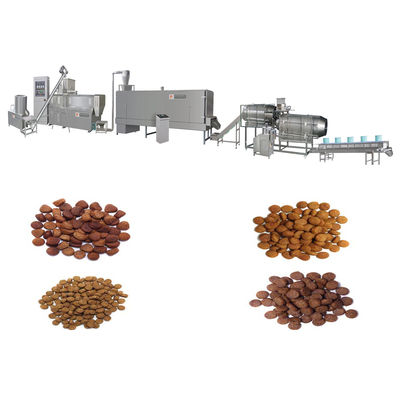

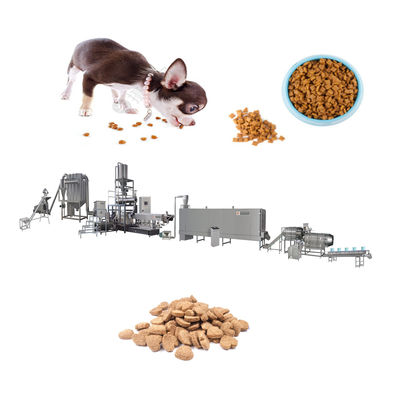

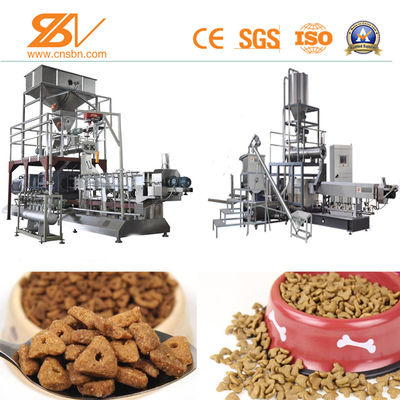

Capacidad de la máquina 250kg/h del extrusor del acero inoxidable de las plantas de tratamiento del alimento para animales |
|
Datos del producto:
|
| Nombre: | Máquina de extrusión de alimentos para mascotas | Artesanía: | extrusor |
|---|---|---|---|
| Capacidad: | 150-210 kg/h, 250-310 kg/h, 450-500 kg/h, 800-1500 kg/h, 2-3 t/h | Modelar: | SLG65/SLG70/SLG85/SLG95/SLG120 |
| Voltaje: | 360V/60HZvoltaje local de los clientes | Peso: | 2200-22000kg |
| Servicio: | Servicio de instalación de ingenieros, trabajador de formación | Material: | de acero inoxidable de grado alimentario 201,304 |
| Piezas de repuesto: | gratis | Conversor: | ABB, LS, delta |
| Resaltar: | pet feed granular extruder machine,pet food processing line equipment,granular extruder for pet feed |
||
| Model | SLG65 | SLG70 | SLG85 | SLG95 |
| Install Power | 65KW | 110KW | 190KW | 250KW |
| Consumption Power | 42KW | 77KW | 133KW | 175KW |
| Output | 120-150KG/H | 220-260KG/H | 500-600KG/H | 900-1000KG/H |
| Dimension | 19000×1300×2200mm | 22000×1300×2200mm | 30000×1300×2500mm | 38000×1300×3000mm |
6. Extruding system:
The working principle is forcing the ingredients forward to be conveyed and extruded
in the sealed charging barrel by making use of the engaged twin screws, at the same time, heating the ingredients through heating-cycles, the ingredients are
mixed, melt and sheared step by step under the conditions of high temperature and pressure. At last the ingredients are inflated at the point of being extruded
out. This system possesses self-cleaning function.
| Machine attributes: | |
| Brand Name | SBN |
| Type | Twin and single screw food extruder |
| Place of Origin | Shandong, China |
| Model No. | SLG |
| Application | Fish feed processing line |
| Voltage | 3 phase 380V/50HZ, Single phase 220V/50HZ(or design) |
| Powder(kw) | 60-200kw for a complete plant |
| Weight | 1000-9000kgs |
| Dimension(L*W*H) | 21*2.0*4.0 |
| Certification | CE,SGS, BV |
| Warranty | 12 months |
| Machine material | Food grade Stainless steel |
| Motor | Chinese brands, Siemens, ABB, etc |
| Inverter(Defaule Customer Options) | Delta(the most famous brand in Taiwan) |
| Trial production | Available |
| OEM | Yes |
| Payment terms | T/T, L/C OR NEGOTABLE |
| Packing details | De-rusting oil with plastic bags, wooden cases |
| Delivery details | 30 days after the order |
| Consult | free |
![]()
